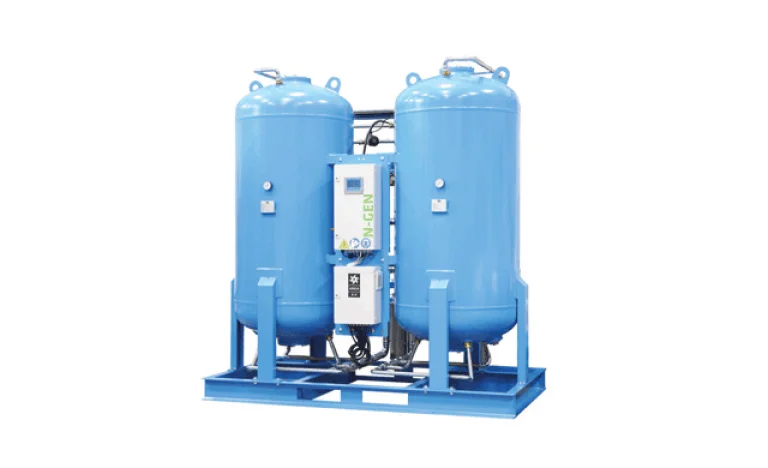

N-GEN SERIES : PSA NITROGEN GENERATORS
หจก.แอ๊ดวานซ์ คอมเพรสเซอร์ เซอร์วิส
GENERATORS , OMEGA
6-10 bar
Operating pressure
5 to 50 °c
Operating temp.range (feed air)
< -45 °c
dew points (atmospheric)
0,83 to 766,8 Nm³/h
Capacity
up to 99,999%
N₂ purity
APPLICATION
• Blanketing of Chemicals
• Gas Assisted Injection Moulding (GAIM)
• Heat Treatment of Ferrous & Non-Ferrous Metals
• Inerting of Flammable Liquids
• Laser Cutting
• Prevention of Dust Explosions
• Re-flow and Wave Soldering of PCBs
• UV-Curing of Coatings
• Food processing
คำอธิบาย
DESCRIPTION
The N-GEN nitrogen generators extract the available nitrogen in the ambient air from the other gases by applying the Pressure Swing Adsorption (PSA) technology.
During the PSA process compressed, cleaned ambient air is led to a molecular sieve bed, which allows the nitrogen to pass through as a product gas, but adsorbs other gases. The sieve releases the adsorbed gases to the atmosphere, when the outlet valve is closed and the bed pressure returns to ambient pressure. Subsequently the bed will be purged with nitrogen before fresh compressed air will enter for a new production cycle.
In order to guarantee a constant product flow N-GEN nitrogen generators use two molecular sieve beds, which alternatively switch between the adsorption and the regeneration phase.
