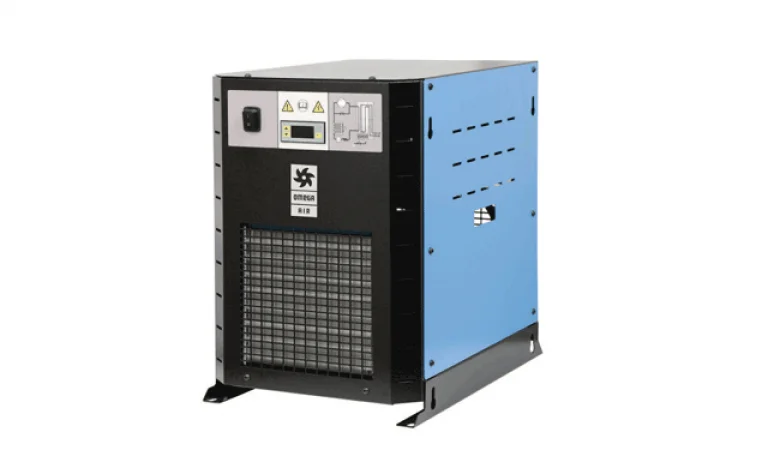

RDP SERIES : REFRIGERATION COMPRESSED AIR DRYERS
SHARE FACEBOOK SHARE LINE 19 VIEW(S)
14 bar
max. operating pressure
1,5 to 45 °c
operating temperature range
3 °c
pressure dew points
20 to 13.200 Nm³/h
flow rate
R134a (R407c)
refrigerant
air cooled
type of cooling
APPLICATION
• Compressed air systems
• Sized to match standard compressor outputs
คำอธิบาย
RDP refrigeration dryers have been designed to effectively separate water from the compressed air thus lower pressure dew point all the way down to +3°C.
Drying is achieved on the principle of cooling which takes place inside highly efficient and ultra-compact 3 stage heat exchanger. In the first stage (air-air heat exchanger) hot and humid inlet air is being precooled by the cold outgoing air. In the second stage (airrefrigerant heat exchanger) intensive water condensation takes place due to cooling the air.
All condensed water is separated from the main compressed air stream in the third stage by the integrated demister. A proven and robust design enables efficient and reliable operation, fast installation and simple maintenance.
